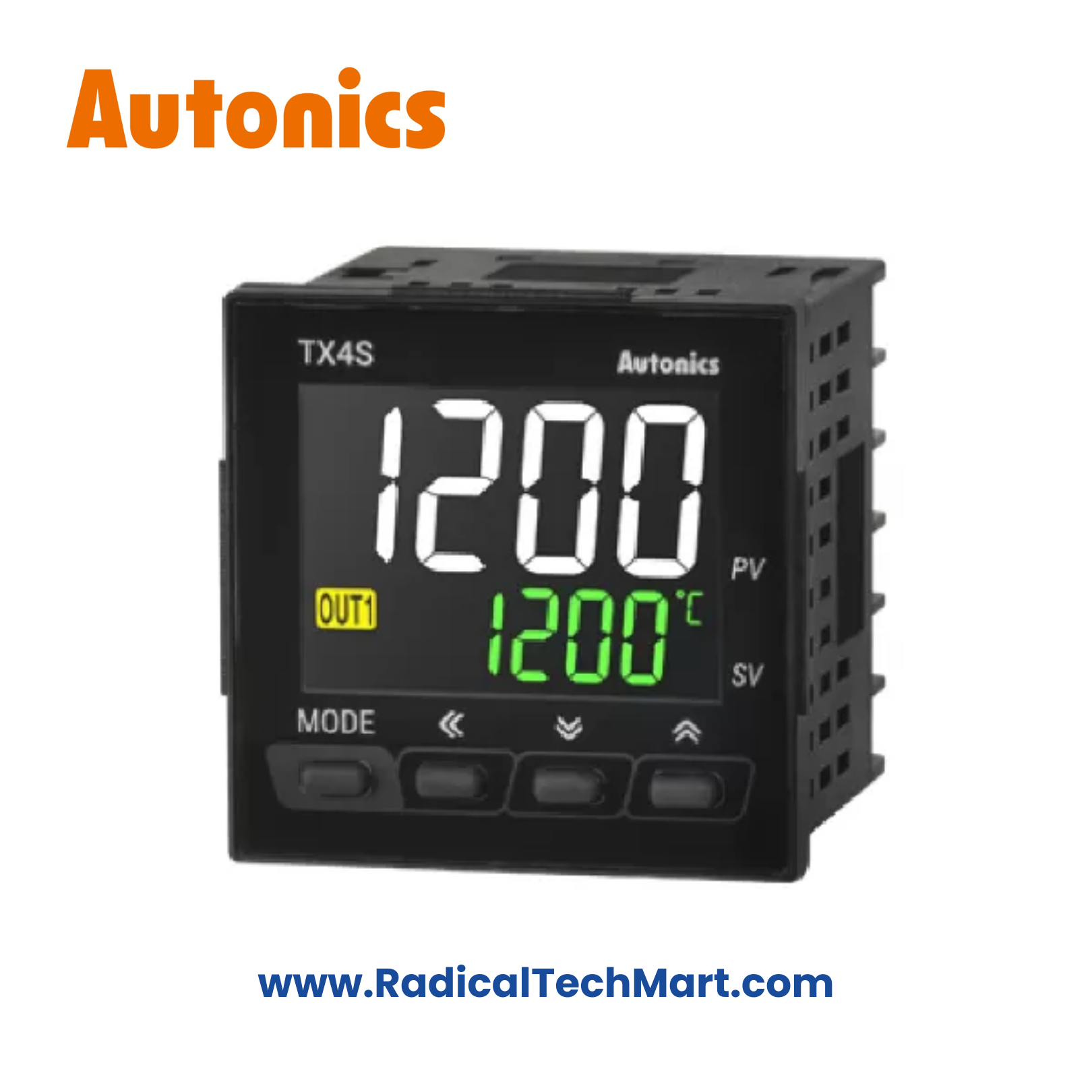

TX4S-14R Autonics Temperature Controller
Autonics TX4S-14R LCD PID Temperature Controller (48×48 mm, Relay Output)
The Autonics TX4S-14R is a compact 48×48 mm LCD PID temperature controller with high-speed 50 ms sampling.
It provides reliable relay control output for industrial heating and process temperature control.
Customize
Share :
The Autonics TX4S-14R is a 48 × 48 mm DIN-size LCD PID temperature controller designed for precise and stable industrial temperature control. It features a clear LCD display, fast 50 ms sampling, and relay control output, making it suitable for direct heater and contactor control.
The TX series combines compact size with high accuracy, making it ideal for OEM panels and industrial machinery.
Key Features
Compact 48 × 48 mm DIN panel size
LCD display with clear PV/SV indication
50 ms high-speed sampling rate
±0.3% FS accuracy
Relay control output for heaters/contactors
Supports thermocouple and RTD inputs
ON/OFF, P, PI, PD, and PID control modes
Auto-tuning for stable temperature control
Slim depth design for space-saving panels
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | LCD PID Temperature Controller |
| Model | TX4S-14R |
| Series | TX |
| Panel Size | 48 × 48 mm |
| Display Type | LCD |
| Sensor Input | Thermocouple / RTD |
| Control Output | Relay |
| Relay Rating | 250 VAC, 3 A (resistive) |
| Alarm Output | 1 Relay Alarm |
| Sampling Period | 50 ms |
| Accuracy | ±0.3% FS |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Control Modes | ON/OFF, P, PI, PD, PID |
| Operating Temperature | −10 to +50 °C |
| Mounting | Panel Mount |
Applications
Industrial heaters
Ovens and furnaces
Packaging and sealing machines
Plastic processing equipment
OEM automation panels
General process temperature control
What’s in the Box?
Autonics TX4S-14R Temperature Controller
Panel mounting bracket
Instruction manual
FAQ
Q1. What does “14R” indicate in the model number?
“14” indicates 1 alarm output, and “R” indicates relay control output.
Q2. Is this controller suitable for direct heater control?
Yes. The relay output is suitable for heater or contactor control.
Q3. Which sensors are supported?
Supports thermocouples (K, J, T, R, S, etc.) and Pt100 RTD sensors.
Q4. Does it support PID auto-tuning?
Yes. The TX4S-14R supports PID auto-tuning.
Q5. What is the panel cut-out size?
Standard 45 × 45 mm panel cut-out for 48×48 mm controllers.
